Odroid N2L 2GB or 4GB ram with 12V 2A power adapter

ODROID N2L  is a new generation single board computer that is more powerful, more stable, and faster performing than the highly versatile N2+ in a more compact, cost-effective way. Suitable for various standalone embedded system which don’t require Ethernet connectivity (Wi-Fi Adapter available separately)

The N2L integrates a quad-core ARM Cortex-A73 2.4Ghz CPU cluster and a dual core Cortex-A53 2.0Ghz cluster with a new generation Mali-G52 GPU. Thanks to the modern 12nm silicon technology, the A73 cores runs at 2.4Ghz without thermal throttling using the stock metal-housing heatsink allowing a robust and quiet computer.

Thanks to the updated LPDDR4 RAM, the N2L performance is around 15% faster than the N2+’s with even lower power consumption.

The size  is decreased to just 69 x 56mm making easy to fix into smaller standalone devices.

Odroid XU4Q with 2GB LPDDR3 RAM

ODROID-XU4 is a new generation of computing device with more powerful, more energy-efficient hardware and a smaller form factor. Offering open source support, the board can run various flavors of Linux, including the latest Ubuntu 20.04 and Android 4.4 KitKat, 5.0 Lollipop and 7.1 Nougat.

By implementing the eMMC 5.0, USB 3.0 and Gigabit Ethernet interfaces, the ODROID-XU4 boasts amazing data transfer speeds, a feature that is increasingly required to support advanced processing power on ARM devices.

This allows users to experience an upgrade in computing, especially with faster booting, web browsing, networking, and 3D games

KEY FEATURES

  • * Samsung Exynos5422 Cortex™-A15 2Ghz and Cortex™-A7 Octa core CPUs
    * Mali-T628 MP6(OpenGL ES 3.1/2.0/1.1 and OpenCL 1.2 Full profile)
    * 2Gbyte LPDDR3 RAM PoP stacked
    * eMMC5.0 HS400 Flash Storage Interface (eMMC module sold separately)
    * 2 x USB 3.0 Host, 1 x USB 2.0 Host
    * Gigabit Ethernet port
    * HDMI 1.4a for display
    * Size : 83 x 58 x 20 mm approx.(excluding cooler)
    * Power: 5V/4A input

LINKS

Odroid H3 and H3+ Quad-Core Processor Intel Jasper Lake N5105 or N6005

  • Model H3+
    • Intel® Quad-Core Processor Jasper Lake N6005 has a base clock of 2GHz
    • Boost clock of 3.3GHz with 1.5MB L2 and 4MB L3 cache by a 10 nm process.
    • Intel UHD Graphics 32 EUs Turbo 900MHz
  • Model H3
    • Intel® Quad-Core Processor Jasper Lake N5105 has a base clock of 2GHz
    • Boost clock of 2.9GHz with 1.5 MB L2 and 4 MB L3 cache by a 10 nm process.
    • Intel UHD Graphics 24 EUs Turbo 800MHz(H3+:900MHz)
  • Up to 64GB Dual-channel Memory DDR4 PC4-23400 (2933MT/s)
  • Two SO-DIMM slots, up to 32GB per slot
  • PCIe 3.0 x 4 lanes for one M.2 NVMe storage
  • 2 x 2.5Gbit Ethernet ports
  • 2 x SATA 3.0 ports
  • SSE4.2 accelerator (SMM, FPU, NX, MMX, SSE, SSE2, SSE3, SSSE3, SSE4.1, SSE4.2, AES)
  • HDMI 2.0 and DP 1.2 multiple video outputs
  • A configurable Unlimited Performance mode allowing the CPU to run in sustained turbo boost mode.
  • RTC / BIOS backup battery is included

Odroid USB 3.0 eMMC Module Writer Adapter with HS200 Mode

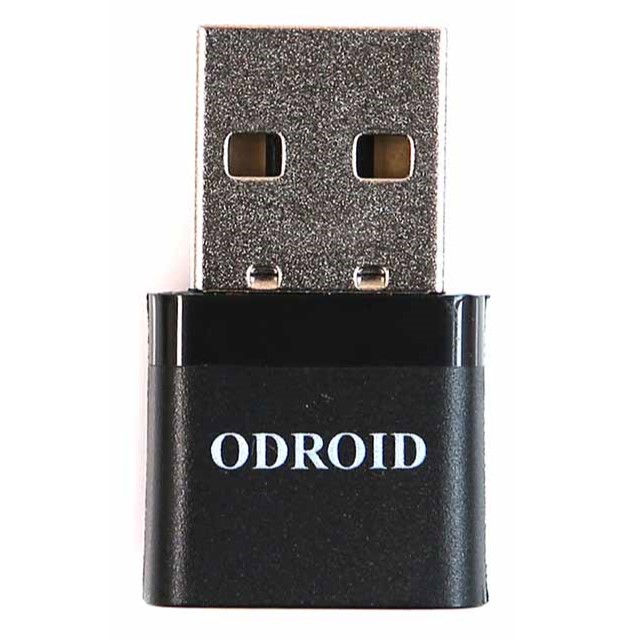

WIFI Module 5BK uses Realtek RTL8821CU as WIFI Module 5B, so it is 100% compatible. IEEE 802.11ac/a/b/g/n WLAN and Bluetooth combo module with on-board 2.4Ghz and 5.8Ghz Dual band antenna.  No longer needs a CD-ROM mode and no longer required usb-modeswitch tweak making it configuration free!  Just update your OS to the latest versions.
  • Realtek RTL8821CU chipset
  • Dual-Band 11ac 1×1 with 64/128/152 bit WEP, WPA/WPA-PSK,WPA2/WPA2-PSK securities
  • Frequency Range: 2.4-2.483GHz ; 5.725~5.825GHz
  • Support WLAN Standards: IEEE802.11ac/a/b/g/n
  • Transfer Speed : ~200 Mbps
  • Support Bluetooth 2.1/3.0/4.2 (No BLE)
  • USB 2.0 High-Speed host interface
  • Antenna Gain: 2dBi
  • Dimension : 28 x 16 x 7 mm
  • LED for WiFi Link Activity
  • Frequency Range: 2.4-2.483GHz ; 5.725~5.825GHz

128GB eMMC Module for Odroid N2, N2+, C0, C1+, C2, C4, M1, XU4, H2

128GB eMMC Module for Odroid Single Board Computers

eMMC storage performance is much higher than SD card performance

Sequential read and write speed is over 150MB/s and 125MB/s respectively.
If you want to only purchase the memory module and don’t have an writer adapter, you contact me and I can load OS of your choice on the module for you at no charge.



32GB eMMC Module for Odroid N2, N2+, C0, C1+, C2, C4, M1, XU4, H2

32GB eMMC Module for Odroid Single Board Computers

eMMC storage performance is much higher than SD card performance

Sequential read and write speed is over 150MB/s and 125MB/s respectively.
If you want to only purchase the memory module and don’t have an writer adapter, you contact me and I can load OS of your choice on the module for you at no charge.
